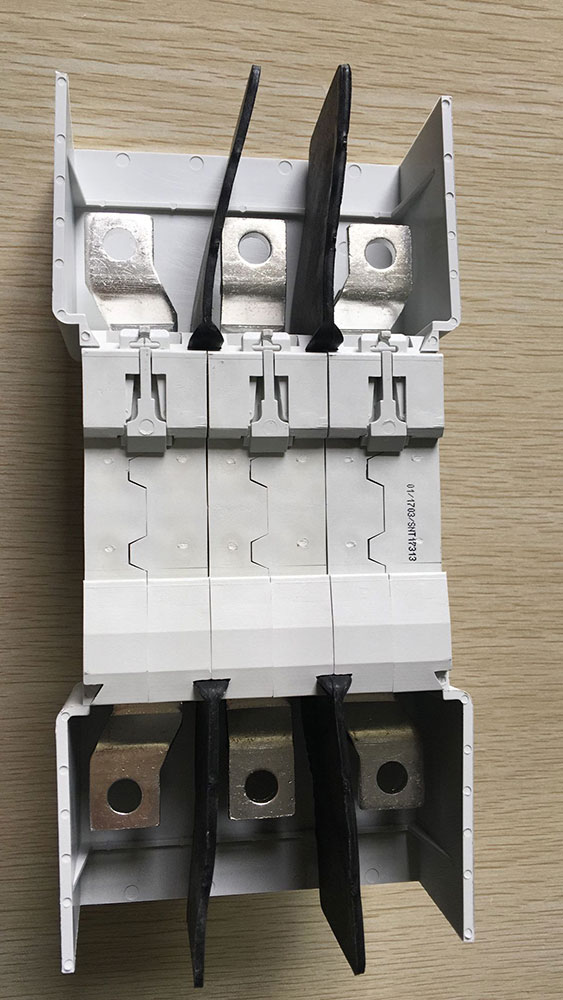

Switch Disconnector terminal shield 1P 2P 3P 4P Lockable Din Rail 125A 160A 250A Isolator Main Switch for Distribution Board

Description Whether the smart : NO Place of Origin : China Brand Name : OEM brand Model Number : SNT2-250 Max. Current : 250A Max. Voltage : 400V Certification : CCC, CE Switch Disconnector terminal shield 1P 2P 3P 4P Lockable Din Rail 125A 160A 250A Isolator Main Switch for Distribution Board   Construction and Feature– Capable of switch electric circuit with load– Provide function of isolation– Used as main switch for household and similar installation   Technical Data:– Pole No.: 1P, 2P, 3P, 4P– Rated current(A): 125A, 160A, 250A– Rated voltage: AC 230/400V– Rated frequency: 50/60Hz– Rated short-circuit making capacity: 3kA– Rated withstand current: 3kA within 1sec– Electro-mechanical endurance: 10000 cycles– Connection capacity: Rigid conductor 50mm2 and up– Connection terminal: Extensional busbar   Installation:– On symmetrical din rail 35.5mm– Panel mounting– Terminal Connection Height: H=22mm
